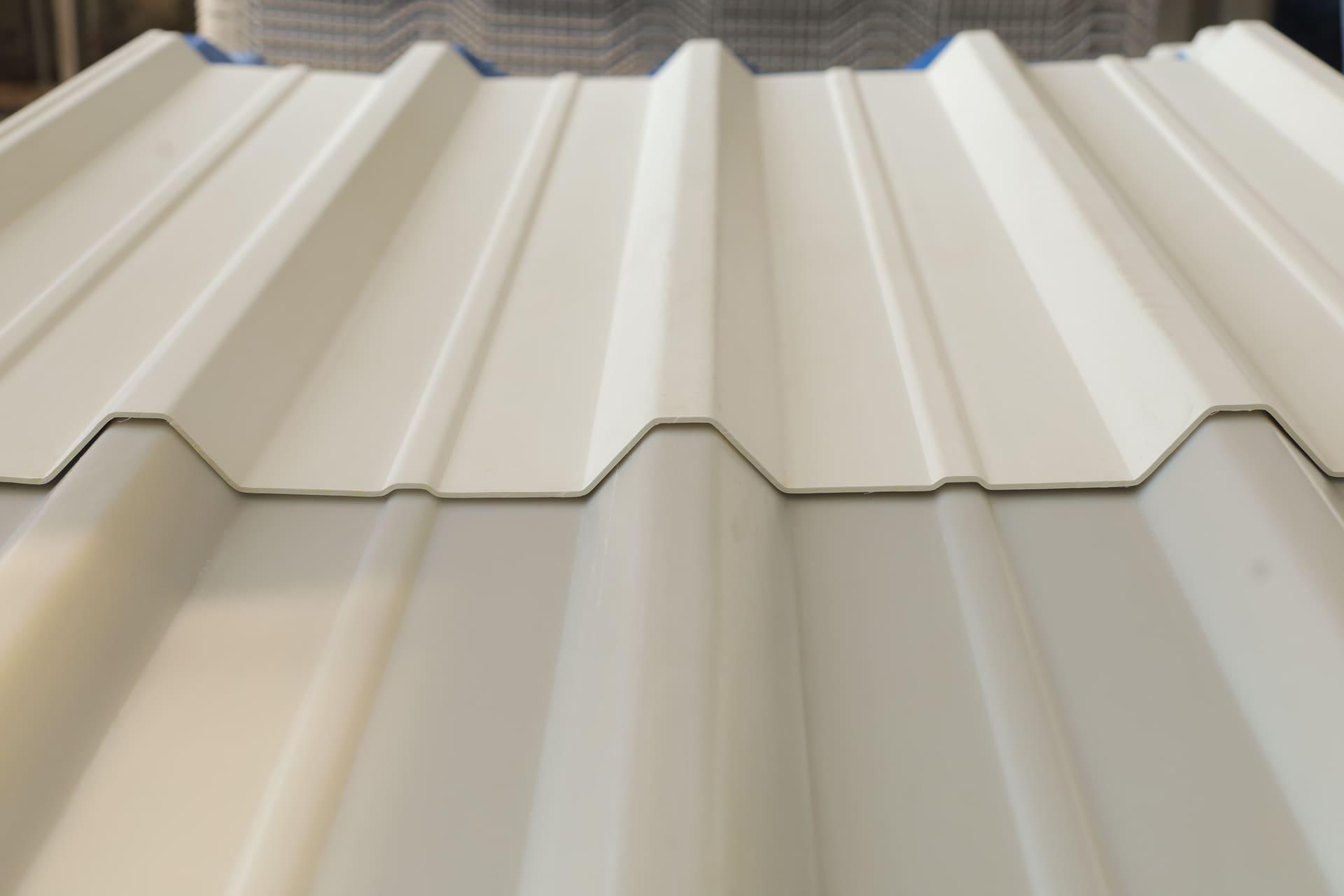

S-Type Single Wall Corrugated Sheets
Made from High-quality uPVC, durable, lightweight, and cost-effective solutions for roofing and cladding.
Overview
Our premium s-type single uPVC sheets are designed specifically for industrial and commercial construction applications. Manufactured from durable uPVC resin, these sheets provide outstanding strength, weather resistance, and chemical resistance. Ideal for roofing, cladding, wall panels, sound barriers, and partitions in industrial and commercial settings. Their low maintenance, excellent insulation, fire resistance, and easy installation make them a cost-effective solution for a wide range of construction projects
Cost effective & maintenance free
Abrasion resistant and variety of color options
Light weight & Alternate of Inferior metal roofing system
Good mechanical strength & impact resistant
Can be cut, shaped, welded and jointed
Environment friendly & Easy to install
S-Type Single Wall Corrugated Sheets
Male & Female Joint
Production Process
1
Introduction of polymer compounds and additives:
Polymer compounds and additives in powder form are fed through a hopper and mixed to create the extrusion material.
2
Cooling of additives:
To prevent premature melting, the additives are cooled before being fed into the extruder. They are transported to a cooler and supplied continuously to the extruder.
3
Melting of plastic compounds:
The extruder’s screw gradually moves the materials along the barrel, and the generated heat melts the plastic compounds.
4
Temperature control:
External heaters are used to maintain the desired temperature as the melted plastic progresses through the barrel.
5
Shaping through a die:
Once the plastic is molten, it is directed through a die, which gives it the desired profile or shape.
6
Continuous process:
Plastic extrusion is a continuous, high-volume manufacturing process ideal for producing profiles, pipes, tubes, and other plastic products. Its efficiency and consistent quality make it a preferred choice in various industries.

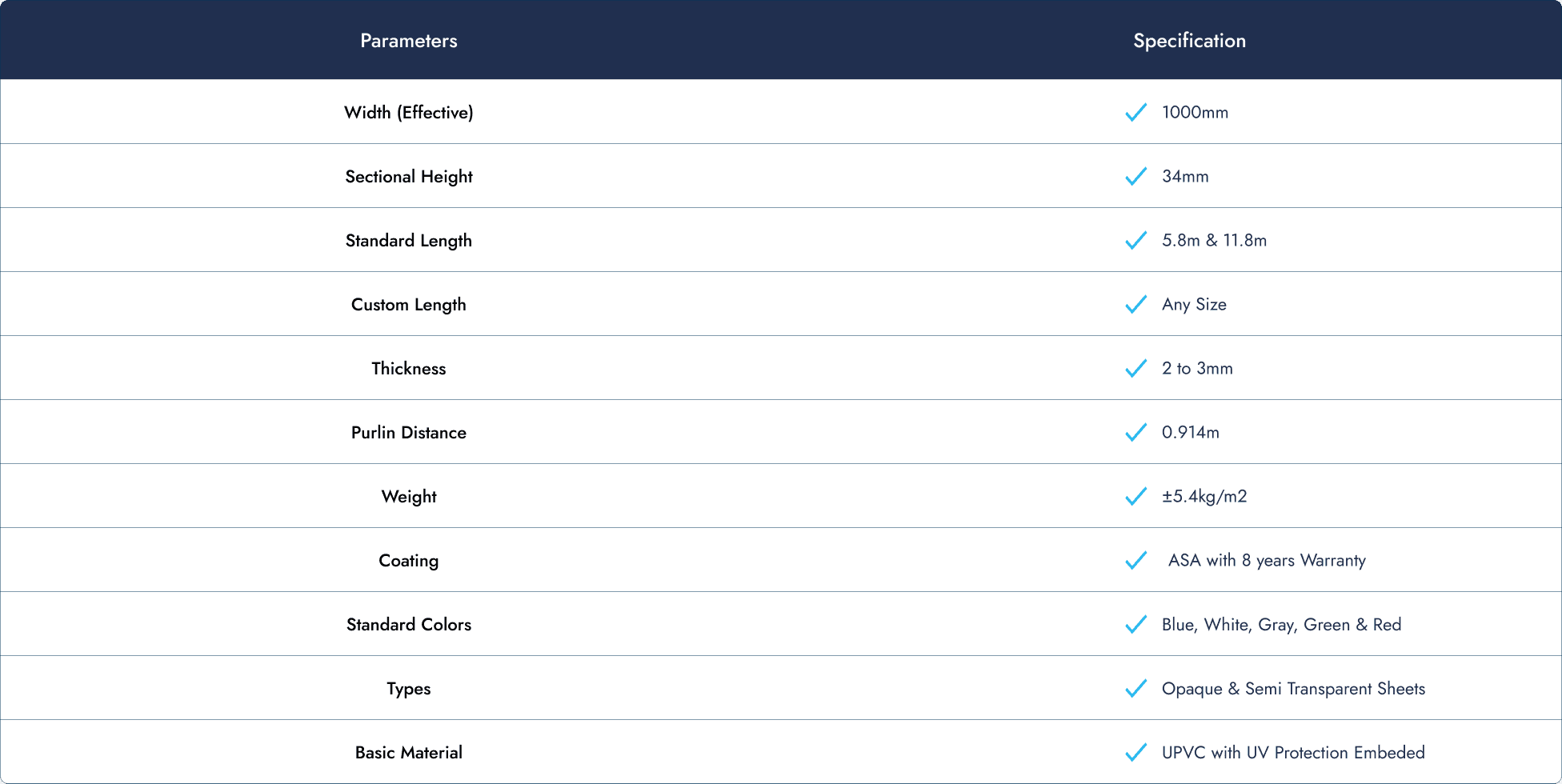

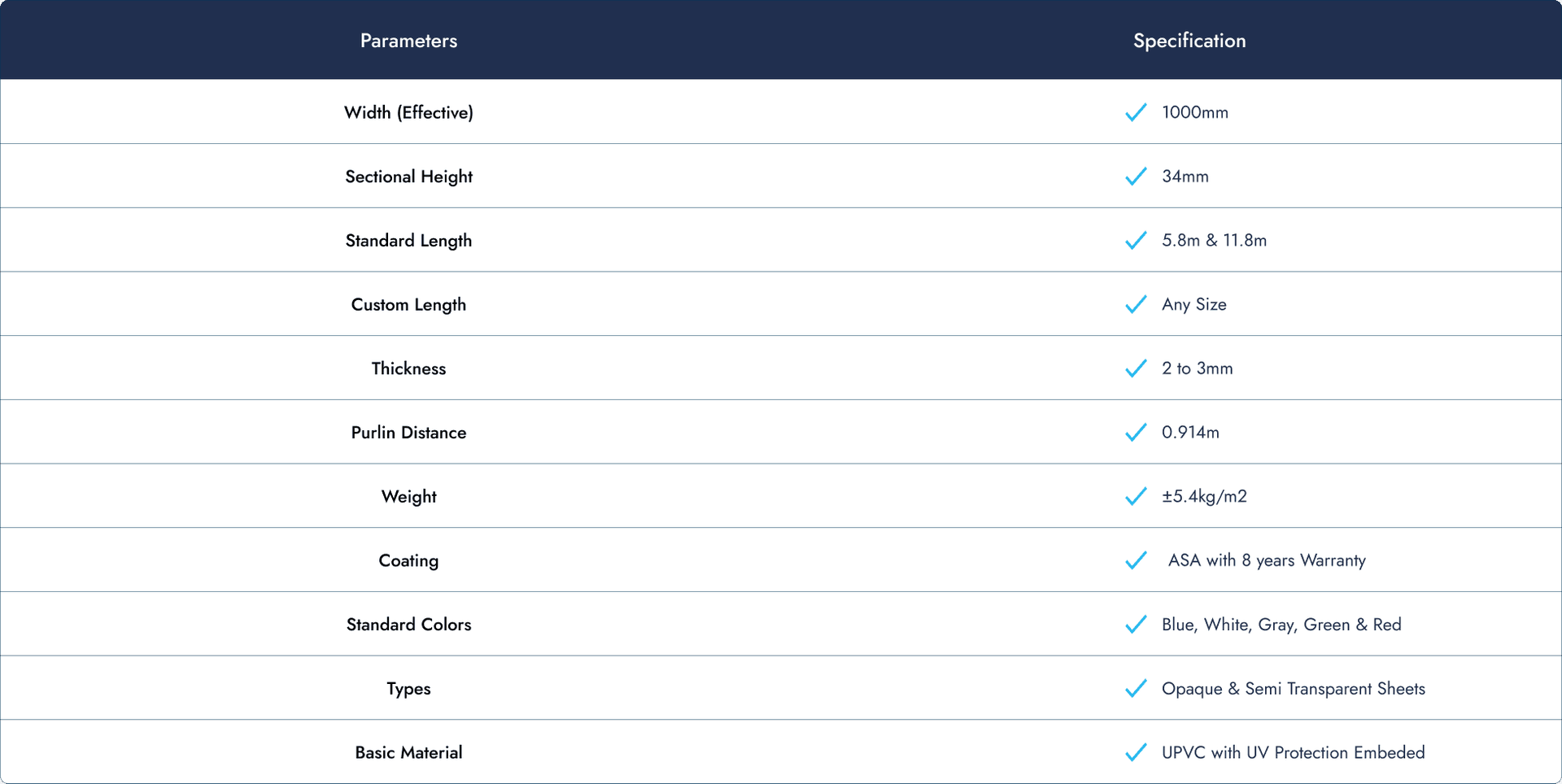

Technical Specifications
